Limitation of Use
The UV water disinfection system NOT intended for the treatment of water that has an obvious contamination or intentional source, such as raw sewage, nor is the unit intended to convert wastewater to microbiologically safe drinking water.
Water Quality (in)
Water quality plays a major role in the transmission of germicidal UV rays. It is recommended that the water does not exceed following maximum concentration levels.
Maximum Concentration Levels (Very Important)
Iron | ≤0.3ppm(0.3mg/L) |
Hardness | ≤0.3ppm(0.3mg/L) |
Turbidity | <5NTU |
Manganese | ≤0.05ppm(0.05mg/L) |
Suspended solids | ≤10ppm(10mg/l) |
UV Transmittance | ≥750‰ |

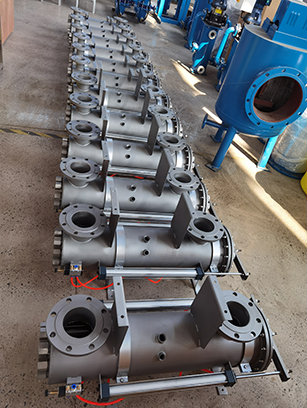

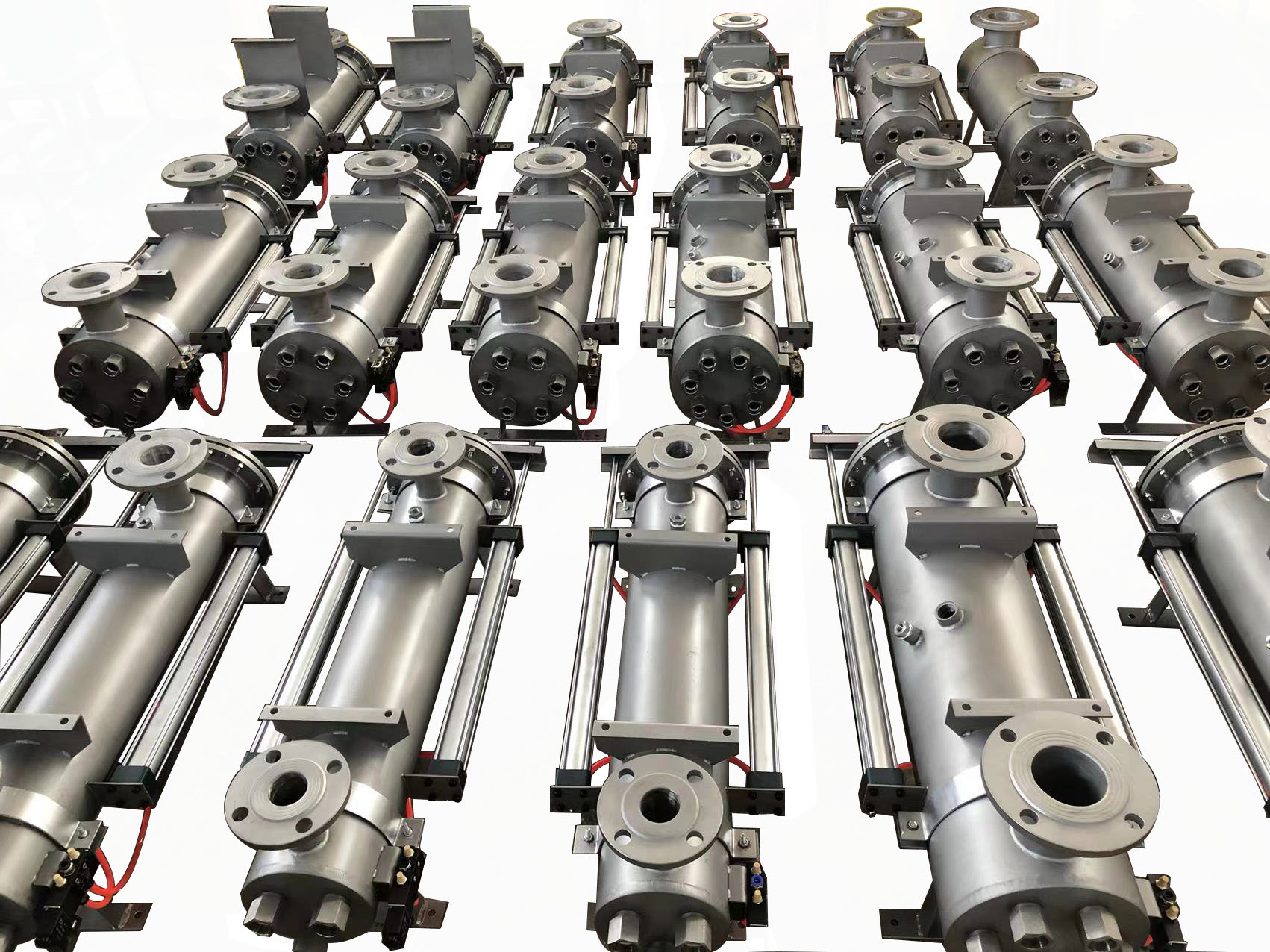

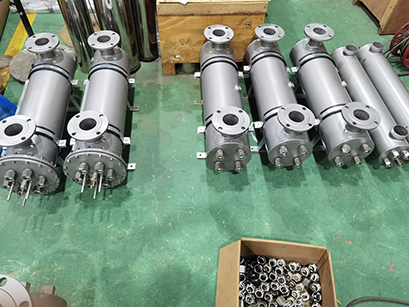

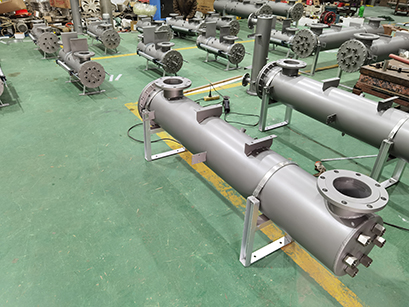

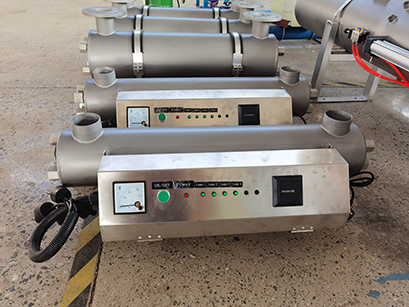

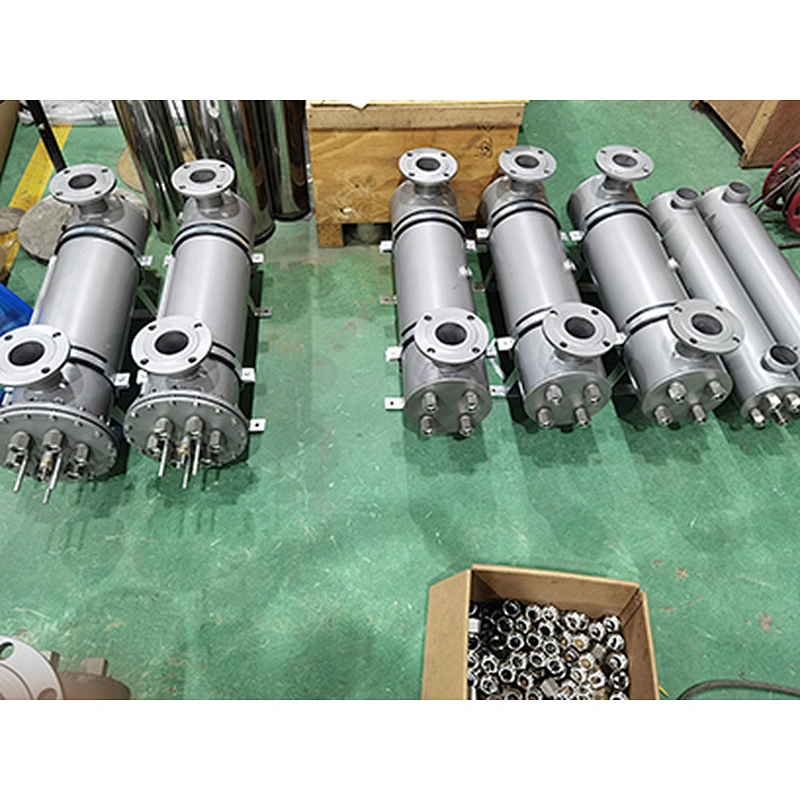

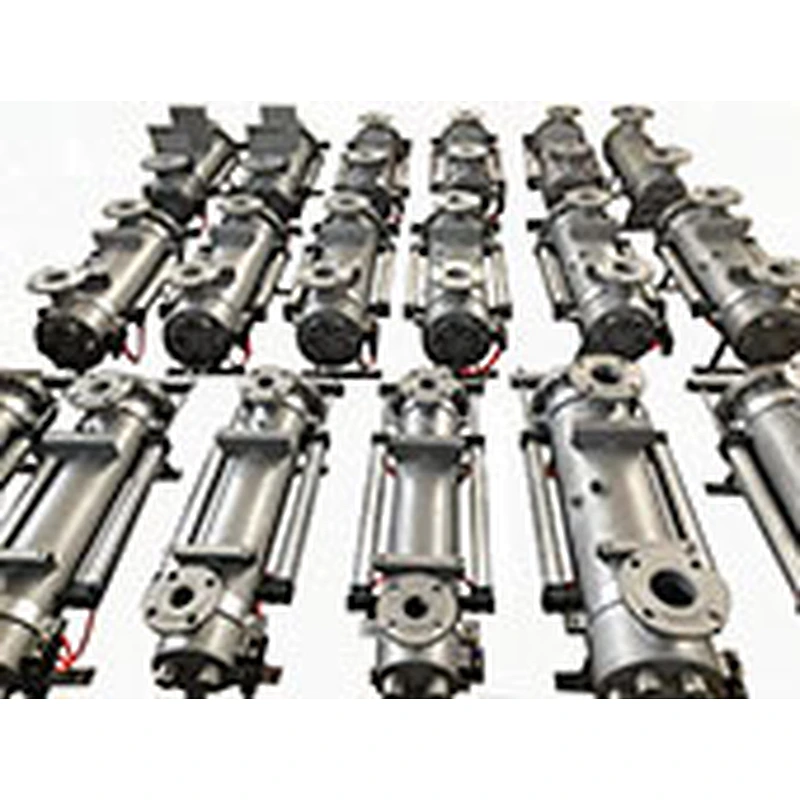

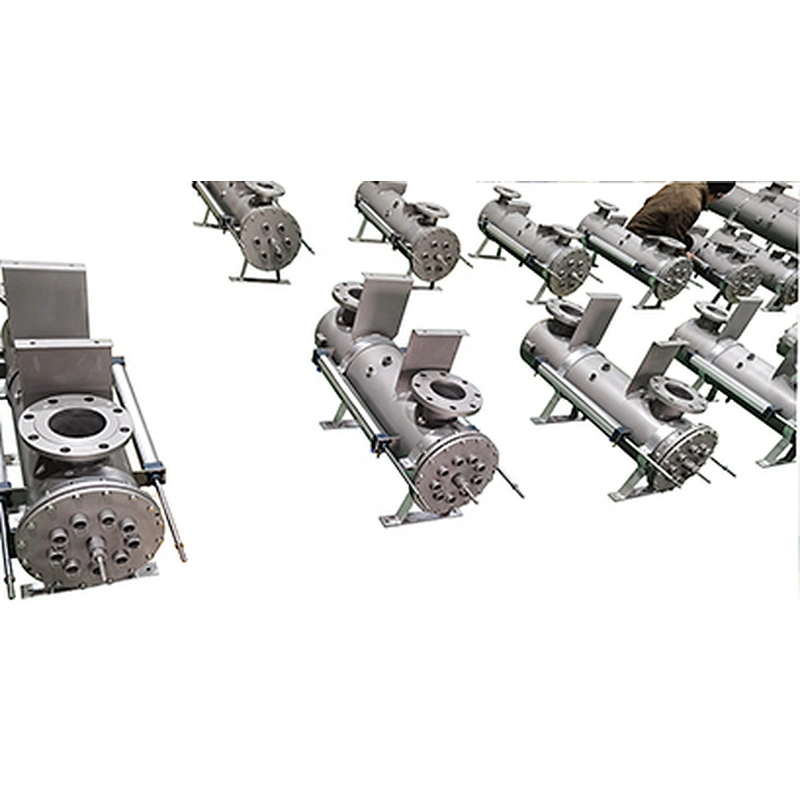

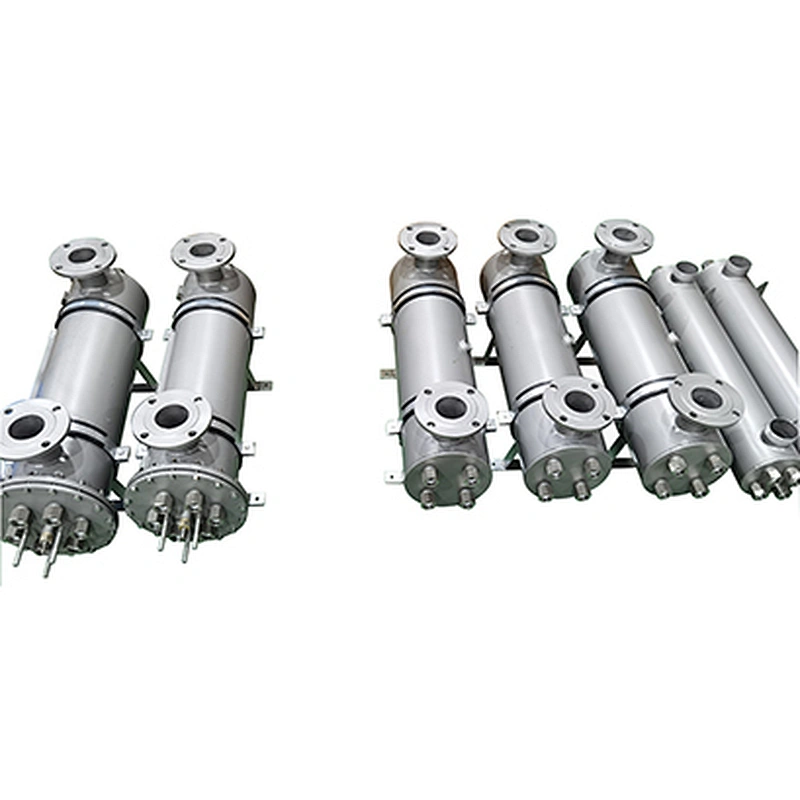

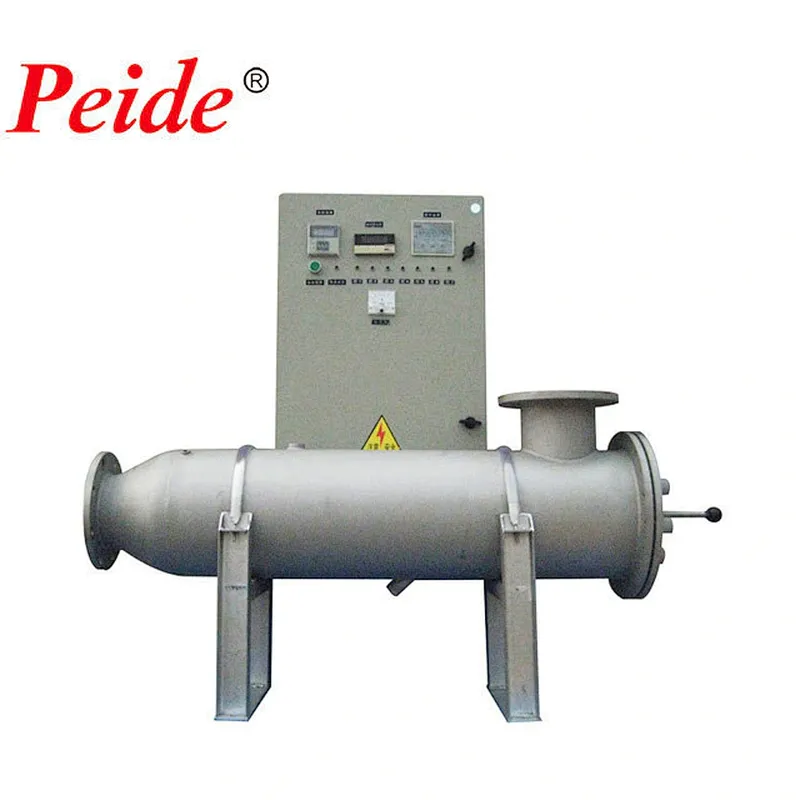

Product Display
UV wavelength (nm)
Bacterial cells will die in the UVC(200-280mm) irradiation. 253.7nm spectral line of low pressure mercury lamp has high bactericidal effect and concentrates more than 900‰ output energy of low-pressure mercury UV lamp.
The units generate a UV dosage of at least 30,000microwatt-seconds per square centimeter (μW-s/cm2), even at the end-of lamp life(EOL), which is more than sufficient to destroy most waterborne microorganisms, such as bacteria, yeasts, algae etc….
DOSAGE is the product of intensity & time
dosage=intensity*time=micro watt/cm2*time=microwatt-seconds per square centimeter
(μW-s/cm2)
Note:1000μW-s/cm2=1mj/cm2(milli-joule/cm2)}
As a general guideline, the following are some typical UV transmission rates (UVT)
City water supplies | 850-980% |
De-ionized or Reverse Osmosis water | 950-980% |
Surface waters(lakes, rivers, etc) | 700-900% |
Ground water(wells) | 900-950% |
Other liquids | 10-990% |
Model No | Flow Rate (m³/h) | All Lamps Power (W) | In / Outlet diameter | Chamber dimensions (mm) | ||
mm | inches | |||||
PDCn-030 | 1 | 40 | 20 | ZG 3/4" | 1000×Φ76 | |
PDCn-050 | 2 | 40 | 25 | ZG 1" | 1000×Φ89 | |
PDCn-080 | 3 | 40 | 25 | ZG 1" | 1000×Φ89 | |
PDCn-150 | 6 | 80 | 32 | ZG 1-1/4 | 1000×300×Φ108 | |
PDCn-200 | 8 | 120 | 40 | ZG 1-1/2 | 1000×400×Φ159 | |
PDCn-300 | 12 | 160 | 50 | ZG 2" | 1000×400×Φ159 | |
PDC-360 | 15 | 200 | 65 | ZG 2-1/2" | 1000×400×Φ159 | |
PDC-500 | 20 | 240 | 65 | ZG 2-1/2" | 1000×500×Φ219 | |
PDC-600 | 25 | 280 | 80 | Flange 3" | 1000×500×Φ219 | |
PDC-700 | 30 | 320 | 100 | Flange 4" | 1000×500×Φ219 | |
PDC-1000 | 40 | 360 | 100 | Flange 4" | 1000×500×Φ219 | |
PDC-1300 | 50 | 435 | 125 | Flange 5" | 1000×570×Φ273 | |
PDC-1500 | 60 | 450 | 150 | Flange 6" | 1000×570×Φ273 | |
PDC-1700 | 70 | 525 | 150 | Flange 6" | 1000×570×Φ273 | |
PDC-2000 | 80 | 560 | 150 | Flange 6" | 1000×570×Φ273 | |
PDC-2500 | 100 | 700 | 150 | Flange 6" | 1000×570×Φ273 | |
PDC-3000 | 125 | 840 | 150 | Flange 6" | 1000×570×Φ273 | |
PDC-4000 | 150 | 1120 | 200 | Flange 8" | 1700×570×Φ325 | |
PDC-5000 | 200 | 1400 | 200 | Flange 8" | 1700×570×Φ377 | |
PDC-7000 | 300 | 2100 | 250 | Flange 10" | 1700×570×Φ426 | |
Drain inch | G 1/2" | |||||
Lamp useful life | 9000 Hour | |||||
UV lamp brand | "Lightsource"from USA | |||||
Single UV lamp | 40w in general. We can aslo supply 75w, 85w, 155w, 240w, 320w | |||||
UV lamp select | If you need we can aslo supply UV lamp which can generater ozone | |||||
Chamber pressure | Rated to 0.6Mpa. If you need higher pressure, please tell me | |||||
Water temperature | The appropriate temperature is 4 - 50 DEGREE (-5-60 degree range) | |||||
Packing | Wooden packaging | |||||
Optional | UV intensity monitor system | |||||
Water temperature monitor system | ||||||
Time accumulator system | ||||||
Cleaning system: Maunal cleaning, Pneumatic cleaning and Electric cleaing | ||||||
