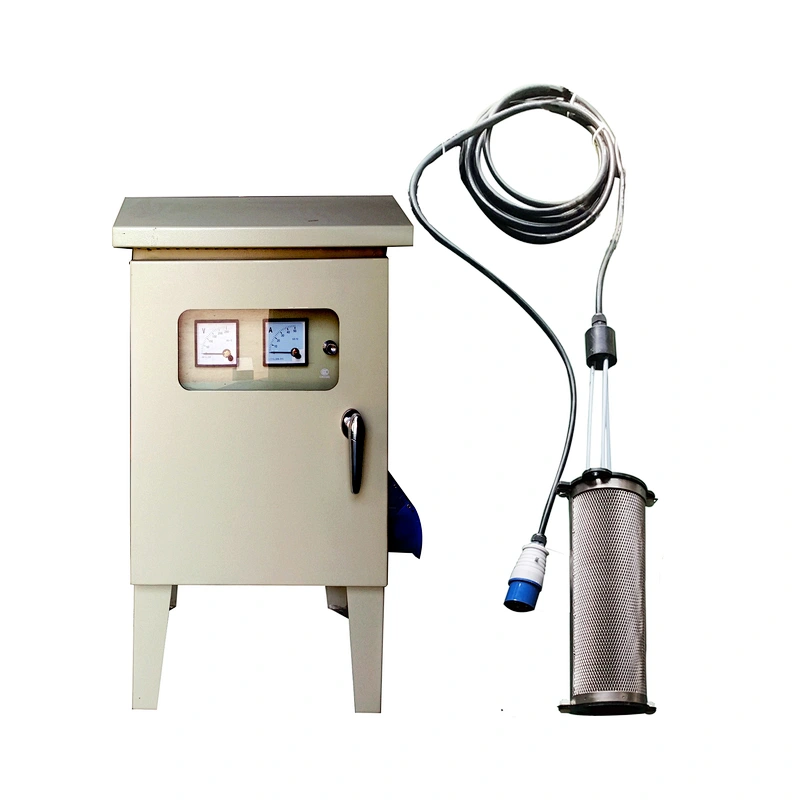

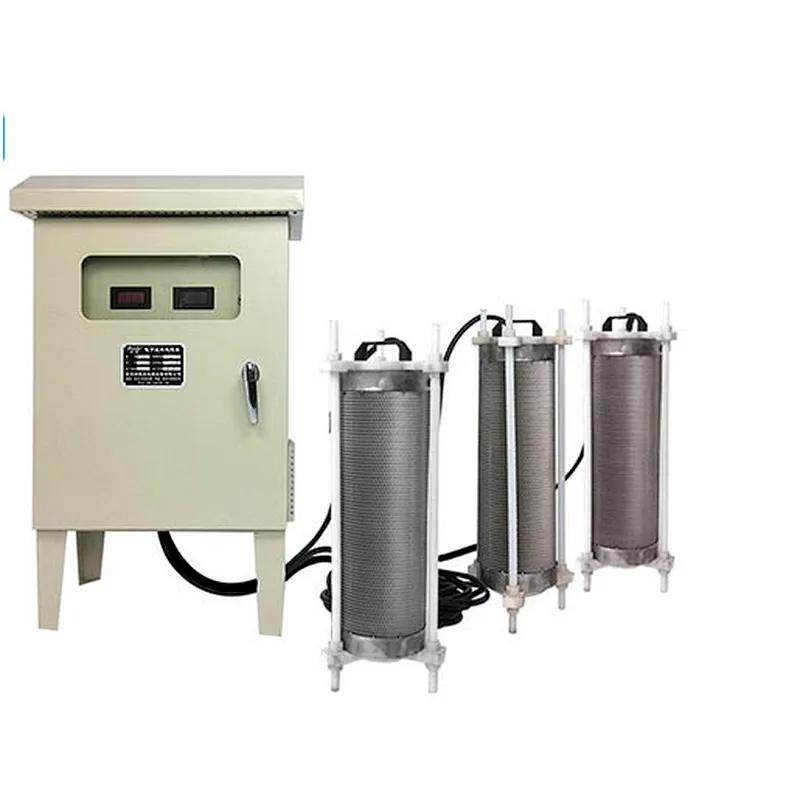

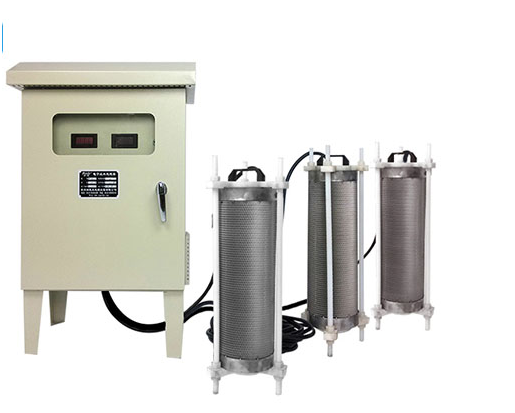

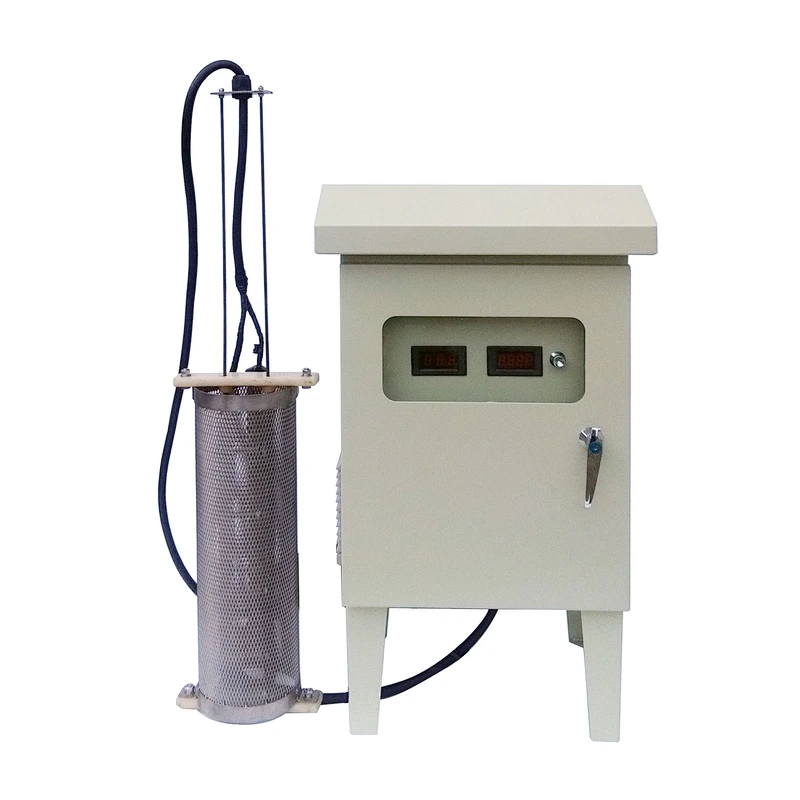

Titanium Anode Basket For Cooling Tower Water Descaling
High-frequency Electromagnetic Activated Water Processor
Remark: The provider data are used for reference only. For the future information, please contact us.
The host model | Adaptive cooling tower | Power input/output | Power | Scale absorber type |
PDII-XG-450/1 | 200RT | AC220V/DC24V | 0-450W | PDII-XF-450-1 |
0-5A/0-19A | ||||
PDII-XG-600/1 | 300RT | AC220V/DC24V | 0-600W | PDII-XF-600-1 |
0-7.5A/0-25A | ||||
PDII-XG-900/2 | 200RT*2 | AC220V/DC24V | 0-900W | PDII-XF-450-1 |
0-10A/0-38A | ||||
PDII-XG-1000/1 | 500RT | AC220V/DC24V | 0-1000W | PDII-XF-1000-1 |
0-10A/0-42A | ||||
PDII-XG-1200/2 | 300RT*2 | AC220V/DC24V | 0-1200W | PDII-XF-600-1 |
0-15A/0-50A | ||||
PDII-XG-2000/2 | 1000RT | AC220V/DC24V | 0-2000W | PDII-XF-1000-1 |
0-20A/0-84A |
Remark: The provider data are used for reference only. For the future information, please contact us.

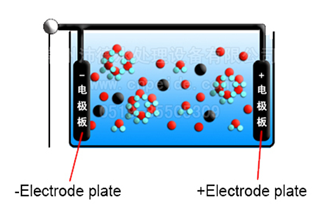

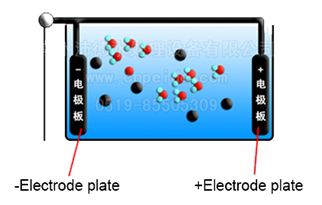

Before use, water in cooling tower exists mainly as macro-molecule, which contains free oxygen, bacteria, organisms. Those are main reason to cause pipe rust, corrosion. |  |

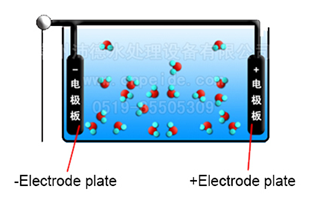

In use, we makes use of electrolysis technology to create high frequency power, which break up water molecules. |  |
In this process, water molecules breaks as of electrolysis, creates active oxygen which can oxidize organisms, bacterial into CO2, and exhaust. Meanwhile, part free oxygen combines with free oxygen into o xygen, exhaust. Finally negative pole gathers with lots active hydrogen, which helps cooling tower water stays in a strong reducing environment. |  |
| Remark: Red ball stands for free oxygen, black ball stands for bacterial, organisms. | |
Titanium Anode Basket For Cooling Tower Water Descaling Ionizer Water Treatment Specification
| Model | PD-XG-40 | PD-XG-80 | PD-XG-100 | PD-XG-200 | PD-XG-300 | |
| Standard flow rate (T/H) | 60 | 140 | 180 | 300 | 400 | |
| Size | Control box (mm) | 400×320×700 | 480×380×870 | 480×380×870 | 550×450×900 | 600×500×1000 |
| Scaler absorber (mm) | Φ250×680 | |||||
| Water pressure | 0.04Mpa~0.2Mpa | |||||
| Input power supply | AC100~240V/50~60Hz | |||||
| Max flow rate(L/min) | 15 | 25 | 30 | 50 | 70 | |
| Electrode bar lifetime | 3 years (based on water quality) | |||||
| Contact with manufacturer if require customized. | ||||||
How does water scale harmful to equipment?
Water scale mainly consists of carbonate, magnesium, occupy 60%. Other kind scale includes sulfate, silicate, iron, occupy around 10%. Dust sludge around 30%. Scale largely reduce heat-exchange and reaction efficiency, which largely increase power consumption. Take center air-conditioning as example. Once scale 0.3mm forms at heat ex changer will cause 20% heat loss, increase 10% energy consumption.

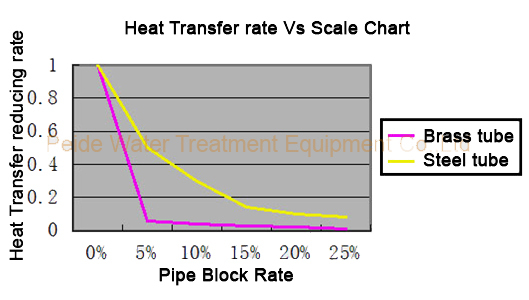

Scale Thickness vs Heat Exchange Loss vs Equipment Power Consumption Chart
| scale thickness(mm) | heat exchange(BTU/ ft2 /℉) | heat loss(%) | Power consumption(%) |
| 0.0mm | 92.77 | 0 | 0% |
| 0.3mm | 73.68 | 21% | 10% |
| 0.6mm | 61.12 | 34% | 20% |
| 0.9mm | 52.2 | 44% | 31% |
| 1.2mm | 45.6 | 56% | 42% |
| 1.6mm | 39.52 | 57% | 53% |
pplication
Ionizer Water Treatment Application
Electrical descaler widely used at industry, agriculture, environmental protection field, and daily life. Example like: power plant, steel plant, cement factor, pharmaceutic, paper printing, coal and mining industry, etc.
In center air conditioning, electrical descaler helps solve scale, sludge sedimentation, bacterial problem. Center air conditioning system used at factory, hotel, shop mall, office building etc.
In heat supply system to solve scale, rust problem. Such like: electronic factory, module factory, heating supply system.
In boiler water treating, it can replace ion exchange softener equipment.
Feature
1.Save Energy, Protect Environment
Electrical descaler can works under high efficiency, low power consumption. As of its constant working, which ensure constant electrolysis environment. It reduces over 4% power consumption. Easy to clean, no need drain,friendly to environment.
Take 250KW center air conditioning system as example.
Install descaler, it will save 54% electricity if sale thickness 1.6mm. (Save 340200 KWH)
Install descaler, it will save 31% electricity if sale thickness 0.9mm. (Save 195300 KWH)
Install descaler, it will save 7.9% electricity if sale thickness 0.2-0.3mm. (Save 49770KWH)
2.Low Cost Maintenance
Take 400RT air conditioning as example.
Electrical descaler input power is 350W, only cost USD500 operation cost. Easy to clean as well, around 15M one time.
3. Long lifetime
Electrical descaler can separated chemical corrosion, long its lifetime.
4. Easy Operation
Clean dirty collector 2-3times.
After using 2months, water can achieve best condition. Even if stop using for one moth, recycling water systemwon’t appear stop working or alarm.
Technical Parameter and Specification
Small scale water supply plant, home well usually have high hardness, bad taste. Electrical descalerenables to reduce water total hardness, total alkaline and total bacterial cluster. It keeps drinking water clean and safe.
Water water treating plant usually has troubles of fast sediment sludge. Electrical descaler helps to reduce treating cost, absorb most heavy metal ion meanwhile, kill bacterial, protect environment.

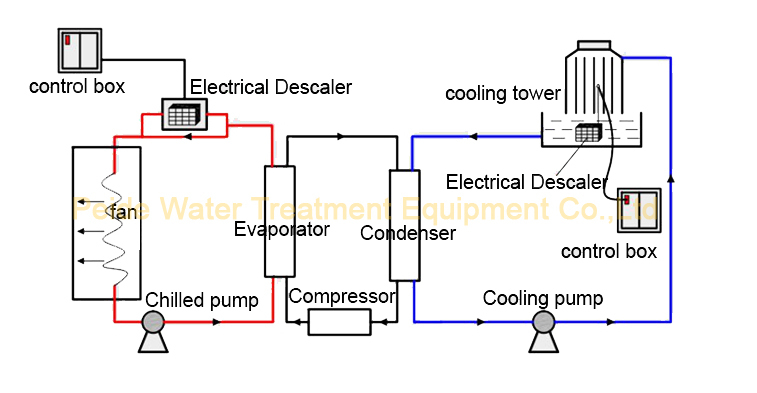

Installation Diagram
Ionizer Water Treatment Install Chart
Take off both ends cover
Separate negative and positive electrode
Use nitrohydrochloric acid to clean electrodes 2-3minutes, wash with clean water till clean
Fix electrode at cooling tower for work
Wear protection glass, anti acid gloves when cleaning electrodes. Ask help for doctor if acid liquid touches skin.

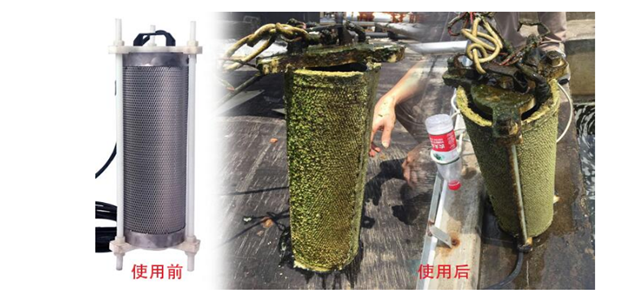

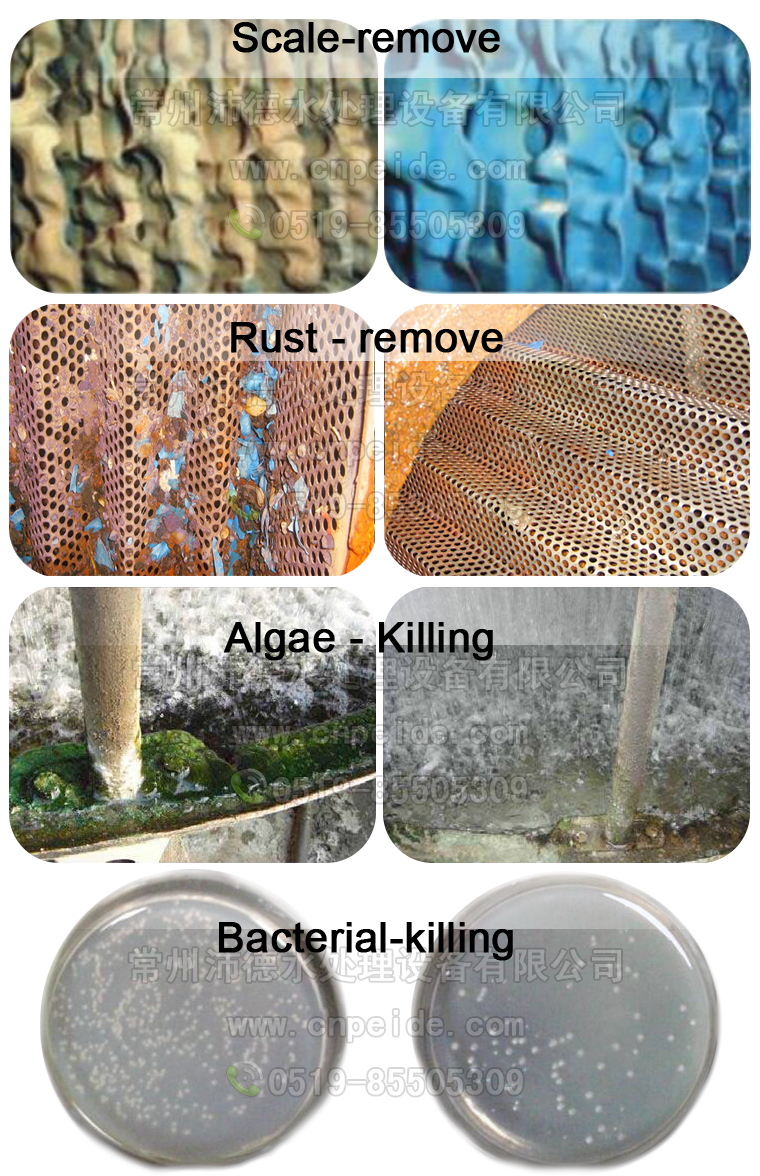

Ionizer Water Treatment After treating results

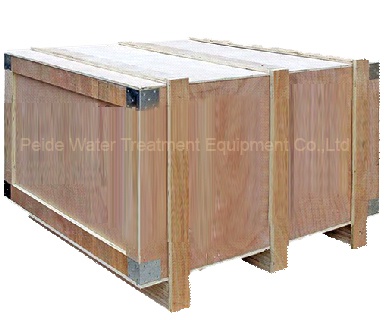

Packing

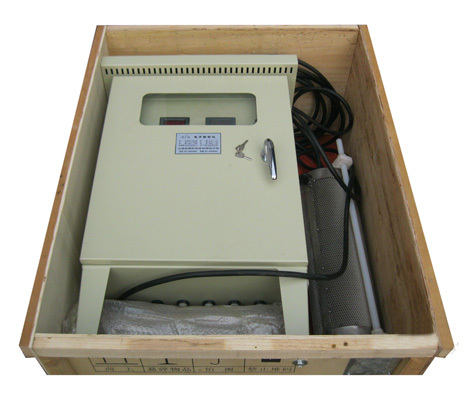

Ionizer Water Treatment Packing
Certificates
Install Notice
Notice Installation
- Electrode bar should immerse in water
- Keep control box as near electrode as possible, rain proof.
- Don’t shut on/off frequently after connecting wire.
- Close power supply before clean electrode
- Clean electrode:
Disassemble 3 pieces screw and bolts
Operation Interface NO.1
Microcomputer control system with 7HMI human-machine interface
(panel protection grade IP65)
User-friendly control：
Text graphics control mode, simple and convenient, users can touch the screen
Achieve operational or set objectives and provide graphical operational information.
Safety rating system:
Password control for different operators to set or modify parameter values permissions ( sub users and maintainers) to ensure the safety of the system operation.
Run the set：
Operating date and time can be selected through the interface. The minimum unit is minutes, which meets the owner's requirement. Actual operation status of water distribution system.
Intelligent output：
Automatically adjust the operating power according to the water quality conditions, effectively adsorb water ions and release negative ions。Remove scale from cooling tower cooling material and cooling circulating water.
Operation Interface NO.2
Automatic Drain：
Remove scale and suspended matter to reach the set standard, start automatic sewage system, effectively remove scale and suspended matter in water
Maintenance Instructions：
The scale adsorption saturation of the adsorber reaches the set standard, the system shows cleaning and maintenance, and the operator is timely
Maintain and clean, ensure high frequency electromagnetic water treatment run optimally.
Abnormal Shutdown：
If the host load exceeds or the system is abnormal, it will automatically display the maintenance stop and the system will stop running
Special personnel for maintenance.
Potions configuration：
According to the state of cooling water quality, judge whether it is necessary to add bactericidal and algal removal agent, and choose the date of dosing
(weekly) and time, minimum unit for minutes, start the sterilizing and removing algae dosing pump (optional - not necessary
Sex) to prevent the growth of bacteria and reduce unnecessary drug delivery.
Installation Instructions
We do the best professional service You do the easiest maintenance
